Aluminum Composite Panels (ACPs) are a popular choice in construction due to their strength, flexibility, and appealing look. However, their benefits can only be fully realized with proper installation. In this guide, we'll explore the step-by-step process of installing aluminum composite panels, ensuring a durable and professional finish for your project.
You'll learn how to prepare, frame, cut and install ACPs for the best results.
Before beginning the installation of aluminum composite panels, it's crucial to ensure that all preparations are made to guarantee a smooth and efficient process.

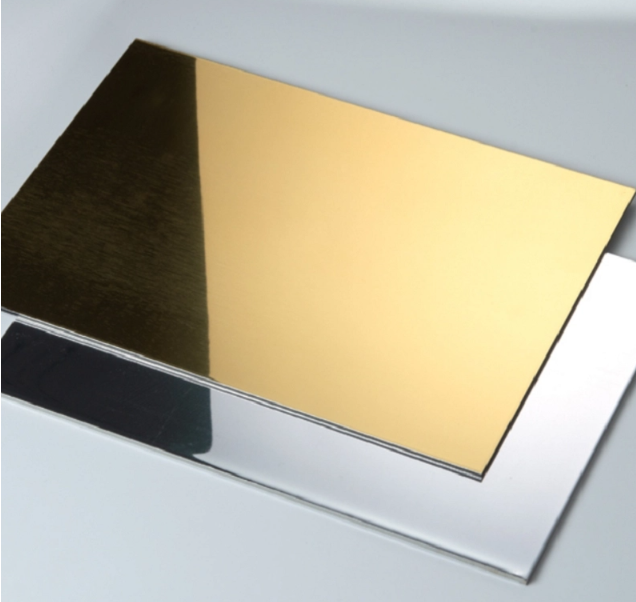

Aluminum composite panels consist of two thin aluminum sheets bonded to a lightweight core material. The core could be made from polyethylene (PE), polyurethane (PU), or mineral wool, each offering different benefits such as thermal insulation, fire resistance, or lightweight properties.
Polyethylene (PE) core: Cost-effective with moderate insulation.
Polyurethane (PU) core: Offers better insulation and fire resistance.
Mineral wool core: The highest fire resistance and non-combustible properties.
Before starting the installation, gather all the required tools and materials. You will need:
Tools: Drill, rivet gun, measuring tape, level, circular saw, and safety gear (gloves, goggles).
Materials: Aluminum composite panels, screws, rivets, adhesive, silicone sealant, and weather-resistant barriers (WRB).
Ensure you have enough ACP panels and all fasteners before you begin the work.
The surface where ACP panels will be installed must be clean, dry, and free of irregularities. This ensures proper adhesion and alignment of the panels. If necessary, reinforce the substrate or install a secondary framing system to create a uniform surface.
A solid framing structure is crucial for the proper support of ACP panels. The substructure needs to be installed correctly to provide a secure foundation for the panels.
The framing system supports the ACP panels and can include:
Metal studs: A cost-effective option for wall framing.
Aluminum extrusions: Offers additional strength for heavier panel systems.
Ensure the framing is plumb, level, and properly anchored to the underlying surface.
Install vertical framing members based on the dimensions of the ACP panels.
Ensure that the spacing between the framing elements aligns with the recommended installation guidelines for your specific ACP system.
Tip: Always leave room for expansion. ACPs expand and contract with temperature changes, so make sure the framing allows for thermal movement.
Cutting the ACPs correctly is critical to achieving a seamless and professional finish. Follow these steps to ensure precise cuts:
Measure the dimensions of the wall or facade where the ACPs will be installed. Make sure to account for any windows, doors, or other penetrations.
Mark the panels for cutting, ensuring they fit the predetermined layout.
Use the appropriate cutting tools for clean and accurate results:
Circular saw for straight cuts.
Jig saw for curves or holes.
Router for detailed trimming.
Note: Always cut from the back of the panel to avoid scratching the finish.
Store the panels on a flat surface and cover them with plastic sheeting to protect them from dirt, moisture, or damage. Panels should be stored in a cool, dry, and well-ventilated area.
Now that you've prepared the site and cut the panels to size, it's time to begin installing them on the substrate.
Start by positioning the ACP panels according to the framing system.
Make sure the panels are aligned properly with the framing, ensuring a uniform appearance and preventing gaps between them.
Secure the panels to the framing using mechanical fasteners such as rivets or screws. The type of fastener depends on the manufacturer’s instructions.
Fasteners should be evenly spaced and properly tightened to avoid panel movement over time.
Tip: Always check the panel alignment before securing it to ensure a uniform finish.
Leave enough space around the edges of each panel to allow for expansion and contraction due to temperature changes. Typically, a gap of about 1mm should be left around the panel edges.
Sealing and weatherproofing are critical steps to ensure that the ACP installation remains intact against moisture infiltration and harsh weather conditions.
Apply a silicone sealant around the edges and joints of the ACP panels. This creates a waterproof barrier, preventing water from seeping into the structure.
Smooth the sealant with a caulking tool to achieve a neat and professional finish.
To prevent moisture buildup, it's essential to maintain proper airflow behind the ACP system. This can be achieved through ventilation channels and weep holes.
Tip: Without proper ventilation, moisture could accumulate behind the panels, leading to mold or corrosion. Ensure you have a well-designed drainage system in place.
After all panels are installed, inspect the entire system to ensure there are no misalignments or gaps. Adjust any panels if necessary to achieve a uniform finish.
Once the ACP panels are installed and sealed, it's time to finalize the project.
Regularly clean the ACP surface with a gentle cleaning solution to remove dirt, debris, and grime.
Avoid using abrasive cleaners that could scratch the surface.
Inspect the panels for any imperfections or damage. If needed, apply touch-up paint to restore the panel's appearance. Keep a maintenance schedule to check the condition of the ACPs regularly, especially after extreme weather events.
Proper installation of aluminum composite panels is essential for ensuring the durability, aesthetic appeal, and functionality of the system. By following the detailed, step-by-step guide provided above, you can install ACP panels correctly, ensuring they perform well for years to come. Regular maintenance and periodic inspections will further extend the life of the ACP system, keeping it looking great and functioning optimally. For high-quality materials and expert installation services, trust MC BOND to meet all your ACP needs.
A: Aluminum composite panels (ACPs) are a construction material made of two aluminum sheets enclosing a lightweight core, commonly used for facades, cladding, and signage.
A: Start by preparing the substrate, then install a framing system to secure the panels using mechanical fasteners like screws or rivets. Follow the manufacturer's instructions for proper spacing and sealing.
A: Tools required include a circular saw, drill, rivet gun, measuring tape, level, and safety gear like gloves and goggles.
