Can Aluminum Composite Panels Be Used Outdoors?

Exterior cladding materials face relentless environmental stress. UV radiation, salt-heavy coastal air, and severe wind loads constantly threaten structural integrity and architectural design. Specifiers and developers must balance the lightweight, workable nature of metal panels against strict building codes, fire safety regulations, and long-term weathering risks. You need facade materials that perform under harsh conditions while maintaining visual appeal over decades of exposure. This guide provides a technical evaluation framework to determine when and how to specify aluminum composite panels for outdoor use. We detail the necessary core materials, advanced coatings, and precise installation methods required for exterior success, ensuring your next facade project meets rigorous aesthetic standards and structural demands.

• Aluminum composite panels are highly viable for outdoor use, provided they are specified with weather-resistant coatings (such as PVDF) and appropriate core materials.

• Building height and local fire codes dictate core selection; standard polyethylene (PE) cores are largely restricted outdoors, necessitating Fire-Retardant (FR) or A2 non-combustible cores.

• Coastal and high-corrosion environments require specific alloy grades and advanced PVDF paint systems to prevent salt-laden air from causing oxidation or delamination.

• Long-term performance relies heavily on proper installation systems (e.g., rainscreen principles) that accommodate thermal expansion, manage wind loads, and prevent moisture entrapment.

Outdoor Feasibility of Aluminum Composite Panels: Basic Performance Requirements

Defining the baseline requirements for exterior facade materials begins with assessing moisture resistance, dimensional stability, and resistance to environmental degradation. Building exteriors face relentless exposure to rain, snow, temperature fluctuations, and atmospheric pollutants. Any material specified for the building envelope must repel water, resist structural warping under thermal stress, and maintain surface integrity. Aluminum Composite Panels meet these exact criteria through their engineered sandwich structure, making them highly effective for exterior applications when manufactured to the correct specifications.

The material composition of these panels dictates their outdoor performance. The structure consists of two thin aluminum sheets continuously bonded to a central core under high heat and pressure. Standard exterior panels typically feature 0.5mm thick aluminum skins bonded to a 3mm or 4mm core, resulting in a total panel thickness of 4mm to 6mm. This composite nature creates a panel that is exceptionally flat, rigid, and lightweight. The outer aluminum skins provide the primary barrier against the elements, while the core dictates fire performance and overall stiffness. Because aluminum naturally forms a protective oxide layer when exposed to air, the metal itself inherently resists deep rusting, unlike steel. The exact performance relies heavily on the specific aluminum alloy chosen for the skins.

Evaluating common exterior-grade aluminum alloys reveals why specific series are mandated for outdoor use. The 3000 series (alloyed with manganese) and the 5000 series (alloyed with magnesium) serve as the industry standards for exterior wall cladding. The 3000 series offers excellent baseline corrosion resistance and sufficient structural rigidity for standard commercial facades. For more demanding environments, the 5000 series provides superior tensile strength and enhanced resistance to marine environments. Selecting the correct alloy ensures the panel will not deform under wind pressure and will resist the initial stages of oxidation before the protective coating comes into play.

Field experience shows that specifying a 3003 alloy for a coastal high-rise often leads to premature pitting if the coating is compromised. Upgrading to a 5005 or 5052 alloy provides a necessary secondary defense mechanism against salt-laden moisture. Facade engineers must match the alloy's mechanical properties to the specific geographic and environmental demands of the project site.

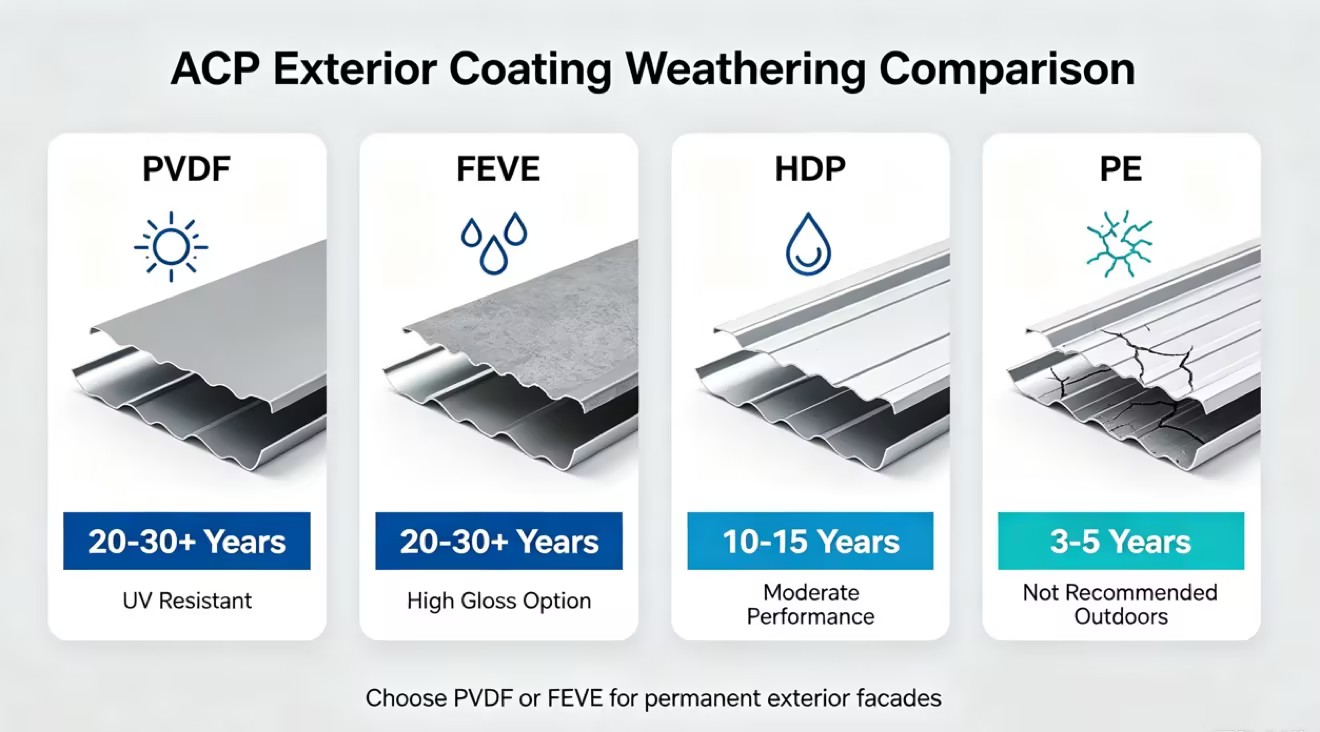

Exterior ACP Coatings: PVDF / FEVE / PE Performance & Application Guide

The longevity of a metal facade depends almost entirely on its surface finish. PVDF (Polyvinylidene Fluoride) coatings represent the industry standard for exterior panels. Formulated with highly stable carbon-fluorine bonds, PVDF resin systems offer unmatched UV resistance. When exposed to direct sunlight for years, inferior paints break down, leading to severe chalking and fading. PVDF coatings maintain color retention and gloss for 20 to 30 years, resisting atmospheric pollutants, acid rain, and airborne chemicals. This chemical stability makes PVDF the non-negotiable choice for any serious outdoor architectural application.

Coastal climates and salt-laden air introduce aggressive corrosive elements that require specialized coating strategies. In marine environments, salt particles settle on the facade, combining with moisture to initiate filiform corrosion—a creeping oxidation that burrows under the paint film. PVDF-coated aluminum panels act as the ideal defense, provided they utilize a high-build paint system. Coastal projects typically require a 3-coat system consisting of a primer, a color coat, and a clear topcoat, achieving a higher total dry film thickness. Rigorous factory pre-treatment of the aluminum surface—often utilizing chromate or advanced zirconium conversions—is mandatory to ensure the paint adheres permanently and blocks salt ingress.

To properly specify coatings for coastal or high-corrosion environments, follow these exact steps during the procurement phase:

1. Specify a minimum 3-coat PVDF system with a total dry film thickness (DFT) of at least 35 microns.

2. Mandate a high-performance primer layer specifically formulated for marine environments to prevent under-film corrosion.

3. Require factory-applied clear topcoats to seal the color pigments against aggressive salt spray and industrial pollutants.

4. Request AAMA 2605 compliance documentation from the manufacturer, verifying the coating has passed 4,000-hour salt spray and humidity tests.

5. Ensure all exposed panel edges are factory-sealed or routed using cassette-fold techniques to prevent moisture from attacking the raw aluminum edges.

For projects demanding high-gloss finishes or vibrant, custom colors, FEVE (Fluoroethylene Vinyl Ether) coatings offer a compelling alternative to PVDF. While PVDF is generally limited to matte or medium-gloss finishes due to its resin structure, FEVE can achieve gloss levels up to 90%. FEVE coatings cure at room temperature or under low heat, forming a dense, cross-linked film that provides exceptional weatherability and chemical resistance. They match PVDF in long-term UV protection while offering architects greater design flexibility for high-visibility commercial exteriors.

Standard Polyester (PE) coatings represent a significant risk factor for outdoor installations. While highly cost-effective and suitable for interior signage or short-term displays, PE coatings lack the chemical bonds necessary to withstand prolonged UV exposure. Within a few years of outdoor use, standard PE coatings suffer from rapid UV degradation. The paint film begins to chalk, colors fade unevenly, and the surface becomes susceptible to scratching and environmental staining. Specifying PE coatings for permanent exterior wall cladding guarantees premature facade failure and costly remediation.

Evaluation Dimensions: Core Types and Fire Safety Compliance

The regulatory landscape governing the use of combustible materials on building exteriors has fundamentally shifted over the past decade. International building codes, including the International Building Code (IBC) in the United States and the EN 13501-1 standard in Europe, strictly regulate facade materials based on building height, occupancy type, and proximity to property lines. The core material of the panel determines its fire classification. Specifiers must navigate these codes meticulously, as selecting the wrong core leads to failed inspections, denied occupancy permits, or catastrophic fire risks.

Standard PE cores consist of 100% unmodified polyethylene. While lightweight and easy to route, polyethylene is highly combustible. When exposed to high heat, it melts, drips, and actively fuels flame spread up the side of a building. Due to severe historical facade fires, the use of standard PE cores in outdoor, multi-story, or high-risk applications faces strict legal restrictions globally. Most jurisdictions ban standard PE cores on buildings exceeding a specific height threshold (often 40 feet or 12 meters), rendering them unsuitable for the vast majority of commercial exterior architecture.

Fire-Retardant (FR) cores provide the necessary safety upgrades for standard commercial exteriors. These cores replace a significant portion of the polyethylene with mineral fillers, typically aluminum trihydroxide (ATH) or magnesium hydroxide. A true FR core contains at least 70% non-combustible mineral content. When exposed to fire, these minerals undergo an endothermic reaction, releasing water vapor that cools the panel and actively suppresses flame spread and smoke generation. FR panels routinely pass stringent assembly tests, such as NFPA 285, allowing them to meet standard exterior code requirements for mid-rise construction.

For maximum safety, A2 Non-Combustible cores represent the highest tier of fire performance. Classified under EN 13501-1 as A2-s1, d0, these cores feature 90% or more inorganic, non-combustible materials bound together with a minimal amount of polymer. They do not contribute to fire growth, produce virtually no smoke, and do not form flaming droplets. A2 cores are mandatory for high-rise facades, hospitals, schools, and high-occupancy structures in many strict jurisdictions. While slightly heavier and more rigid than FR cores, A2 panels guarantee absolute compliance with the most rigorous global fire safety regulations.

ACP vs Traditional Cladding: Performance, Cost & Construction Tradeoffs

When evaluating facade materials, architects often weigh composite panels against solid aluminum sheets. Solid aluminum offers absolute non-combustibility and is entirely recyclable, making it a strong candidate for certain applications. Solid aluminum sheets are prone to "oil-canning"—visible waviness and distortion across the surface caused by internal stresses and thermal expansion. The composite structure eliminates this issue, providing superior flatness and rigidity at a fraction of the weight. The composite approach allows for larger panel spans with less structural framing compared to solid metal.

Comparing metal panels to traditional finishes like fiber cement, masonry, or stucco reveals significant differences in structural requirements and installation speed. Traditional heavy cladding demands robust foundation designs and heavy-duty structural steel to support the immense dead load. The exceptional weight-to-strength ratio of metal composite panels drastically reduces the structural load on the building envelope. Metal panels are fabricated off-site and installed via rapid extrusion systems, cutting weeks off the construction schedule and reducing labor expenses compared to the slow, weather-dependent application of stucco or masonry.

The structural and logistical benefits of lightweight metal cladding include:

• Reduced dead load on the primary building structure, allowing for lighter steel framing and smaller concrete footings.

• Faster installation timelines due to off-site fabrication and modular extrusion mounting systems.

• Ability to install in adverse weather conditions, unlike wet-applied finishes like stucco or masonry.

• Larger panel spans (up to 5 feet by 16 feet) reducing the total number of visible joints and required fasteners.

• Easier handling on the job site, requiring less heavy lifting equipment and reducing worker fatigue.

Analyzing lifecycle maintenance demonstrates the long-term viability of high-spec exterior panels. While the initial material and installation costs of PVDF-coated, fire-rated panels may exceed those of basic stucco or inferior metal siding, the long-term maintenance savings are substantial. These panels require minimal cleaning, never need repainting, and resist impact and weather damage. When installed as part of a ventilated rainscreen system, the panels contribute to significant energy efficiency gains. The continuous insulation and ventilation cavity behind the panels reduce thermal bridging and lower the building's overall heating and cooling demands over its operational lifespan.

Implementation Risks and Mitigation Strategies

Managing Thermal Expansion and Contraction

All metal facades experience dimensional changes due to temperature fluctuations. Aluminum expands approximately 0.000013 inches per inch per degree Fahrenheit. A 10-foot panel can move more than 1/8 of an inch between winter and summer extremes. The primary risk involves panel bowing, buckling, or the shearing of fasteners as the aluminum expands under the summer sun and contracts during winter freezes. If panels are rigidly fixed without room to move, the internal stress will warp the facade. Mitigation requires specifying engineered mounting systems, utilizing aluminum clips and extrusions designed with calculated expansion gaps. Installers must use a combination of fixed points to hold the panel in place and sliding points that allow the panel edges to glide smoothly along the extrusion as temperatures shift.

Wind Load Engineering and Structural Deflection

High-rises and coastal properties face severe aerodynamic forces. The risk here is panel deformation, deflection, or outright detachment under extreme negative wind pressures (suction). A panel that flexes excessively compromises the perimeter sealants or disengages from the mounting track. Mitigation involves utilizing properly spaced aluminum stiffeners adhered to the back of the panel with structural silicone. The entire extrusion system must be engineered and tested to meet local structural wind load codes (such as ASTM E330), ensuring the span between mounting clips handles the maximum calculated wind pressure for the specific geographic zone. Deflection limits are typically held to L/60 or L/90 to prevent visible bowing.

Moisture Management and Sealant Failures

Water infiltration poses a severe threat to any building envelope, potentially leading to core degradation, mold growth, or structural damage behind the cladding. Relying solely on wet-seal systems—where every panel joint is filled with caulking—is a high-risk strategy. Sealants degrade over time, shrink, and eventually fail. Mitigation dictates utilizing pressure-equalized rainscreen systems. A rainscreen allows a small amount of water to enter the cavity but utilizes drainage channels and ventilation to immediately weep the moisture back outside. This dry-seal approach relies on physics rather than perfect caulking, ensuring the structural wall behind the cladding remains completely dry. The air cavity also promotes continuous drying of the weather-resistant barrier.

Edge Protection Techniques to Avoid Core Delamination & Corrosion

The exposed cut edges of a panel represent a vulnerability where the aluminum skins meet the core. In aggressive climates, moisture, salt, or atmospheric chemicals can ingress at these edges, potentially separating the aluminum from the core material. Mitigation starts with proper edge routing and folding techniques. Fabricating the panels into "cassettes" or "pans" folds the aluminum skin over the edges, hiding the core from direct exposure. Installers use a V-groove router bit to remove the back skin and core, leaving about 0.3mm of core material intact before folding the edge 90 degrees. In highly corrosive marine environments, applying appropriate edge sealants or protective tapes during fabrication provides a final barrier against chemical ingress, ensuring the panel layers remain permanently bonded.

Conclusion

Aluminum composite panels are exceptionally suited for outdoor use, but their success is strictly contingent upon specifying the correct coating and a fire-compliant core. When engineered properly, they provide an unbeatable combination of dead-flat aesthetics, structural rigidity, and weather resistance. Failing to respect environmental stressors or building codes will result in rapid material degradation or severe safety liabilities. Your shortlisting logic should follow clear environmental and regulatory rules. Choose PVDF-coated, FR-core panels for standard commercial exteriors where mid-rise fire codes apply. Mandate A2 non-combustible cores for high-rises, hospitals, and schools to ensure absolute regulatory compliance. Specify marine-grade 5000 series alloys with high-build PVDF coatings for coastal projects exposed to salt-laden air.

Take the following actionable steps to move your project forward:

• Consult with a facade engineer to calculate the exact structural wind loads and thermal movement requirements for your specific building elevation.

• Review local building codes with your fire marshal to determine whether an FR or A2 core is legally mandated for your project's height and occupancy type.

• Request comprehensive manufacturer testing data, specifically looking for NFPA 285 fire assembly passes and AAMA 2605 coating compliance.

• Design the facade utilizing a pressure-equalized rainscreen installation method rather than a wet-seal system to guarantee long-term moisture management.

FAQ

Q: How long do aluminum composite panels last outdoors?

A: When specified with a high-quality PVDF coating and installed correctly, aluminum composite panels can last 30 to 50 years outdoors. The PVDF finish typically carries a 20- to 30-year warranty against fading and chalking, while the structural integrity of the aluminum and core remains stable for decades under normal environmental conditions.

Q: Are exterior aluminum composite panels completely waterproof?

A: The panels themselves are entirely waterproof and will not absorb moisture. The overall facade system's waterproof nature depends on the installation method. Rainscreen systems manage water by allowing minor ingress and draining it away, while the actual waterproofing barrier is applied to the building's structural wall behind the panels.

Q: Can ACP be used safely in coastal or high-salt environments?

A: Yes, but they require specific upgrades. Coastal environments demand panels made from marine-grade aluminum alloys (like the 5000 series) and coated with a 3-coat PVDF system. Proper factory pre-treatment and edge sealing are mandatory to prevent salt-laden air from causing filiform corrosion or delamination.

Q: What is the difference between PVDF and PE coatings for outdoor panels?

A: PVDF (Polyvinylidene Fluoride) contains strong carbon-fluorine bonds that resist UV rays, preventing fading and chalking for decades, making it ideal for outdoors. PE (Polyester) coatings lack this UV resistance and will rapidly fade, chalk, and degrade when exposed to direct sunlight, making them unsuitable for long-term exterior architectural use.

Q: Do outdoor aluminum composite panels require specialized maintenance to prevent corrosion?

A: They do not require specialized chemical treatments, but routine maintenance is recommended. Washing the facade annually with mild soap and water removes dirt, industrial pollutants, and salt deposits. Keeping the surface clean prevents corrosive elements from sitting on the paint film, extending the lifespan of the coating.

Q: Are aluminum composite panels safe to use on high-rise building exteriors?

A: Yes, provided they utilize the correct fire-rated core. High-rise buildings strictly require panels with A2 non-combustible cores (containing 90%+ inorganic minerals) to comply with international fire codes. Standard polyethylene (PE) cores are highly combustible and are legally banned for high-rise exterior applications.
