Specifying the correct aluminum composite panel thickness dictates the structural integrity of your entire facade. It goes far beyond aesthetics. Under-specifying leads to immediate field failures. You will see oil canning, dangerous deflection under heavy wind loads, and long-term delamination. Over-specifying adds unnecessary dead load to the building envelope and wastes project resources. You need a rigorous technical evaluation framework to choose between 3mm, 4mm, and 6mm panels. This guide breaks down how application demands, building codes, insulation requirements, and environmental stressors dictate the exact dimension your project requires. We will look at core density, skin gauges, and real-world fabrication limits to ensure your next installation performs exactly as engineered.

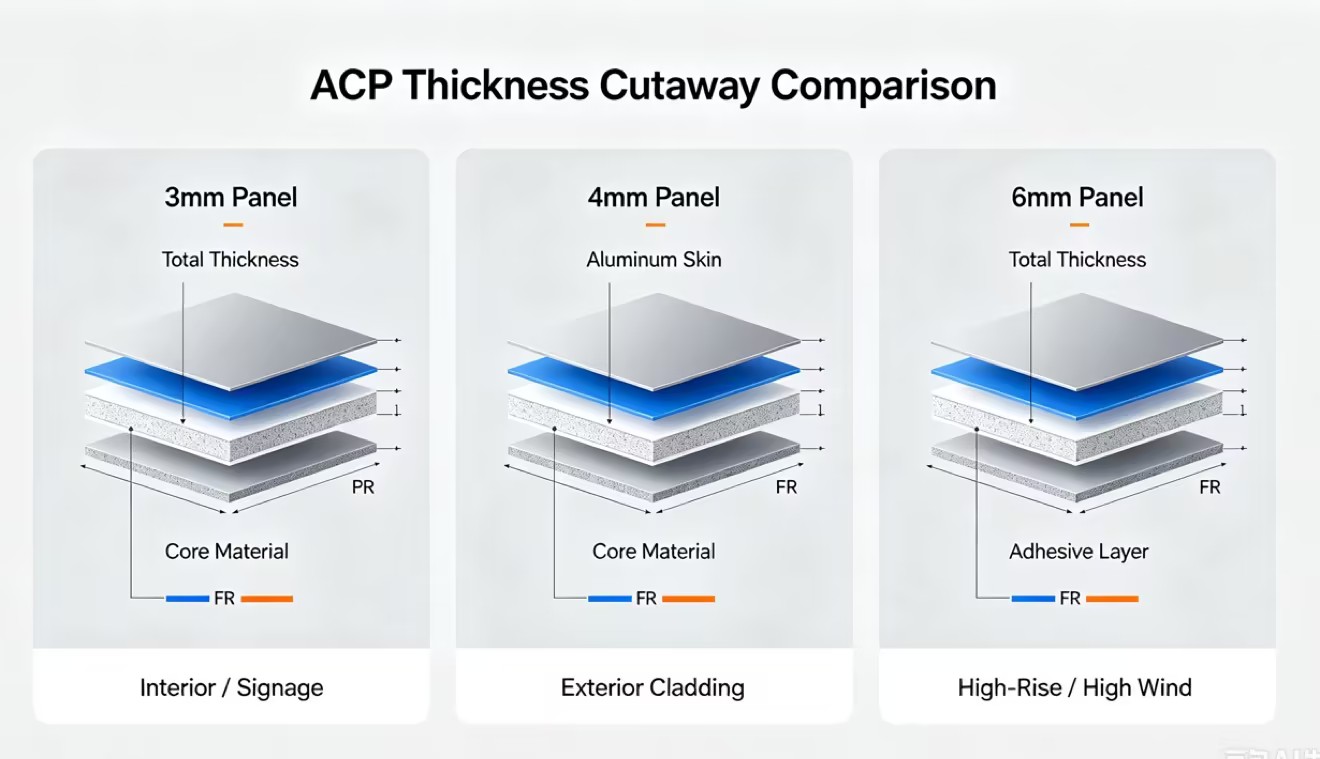

3mm Panels: Optimal for interior applications, signage, and low-stress environments where flexibility, lightweight handling, and ease of installation are prioritized over structural rigidity.
4mm Panels: The industry standard for exterior cladding and architectural facades, offering the necessary balance of wind load resistance, span capacity, thermal insulation, and weight.
6mm Panels: Reserved for high-rise buildings, extreme wind zones, and specialized industrial applications requiring maximum rigidity, impact resistance, and enhanced acoustic dampening.
Skin vs. Total Thickness: Total panel thickness must be evaluated in conjunction with the aluminum skin thickness (e.g., 0.2mm vs. 0.5mm), adhesive layers, and core material type (PE vs. FR) to determine true performance.
Table of Contents
Understanding panel thickness requires breaking down the composite sandwich structure. You must distinguish between the overall composite thickness and the thickness of the individual aluminum skins. Total thickness refers to the complete assembly, typically measuring 3mm, 4mm, or 6mm. However, the top and bottom aluminum coils play an equally vital role in structural performance. These skins usually range from 0.12mm for light interior use up to 0.50mm for heavy-duty exterior applications. The structural integrity of aluminum composite panels relies heavily on this skin gauge. A 4mm panel with 0.50mm skins performs vastly differently than a 4mm panel with 0.20mm skins, especially under negative wind loads.
Manufacturing tolerances play a massive role in large-scale installations. Industry standards generally allow for acceptable variances in thickness, often around ±0.2mm. While this micro-deviation seems negligible on paper, it heavily impacts large-scale facade alignments. When fabricating route-and-return cassette panels for a continuous building envelope, inconsistent thicknesses disrupt joint detailing. Installers rely on precise CNC routing depths to fold the panel edges. If the total thickness fluctuates beyond acceptable tolerances, the V-groove router bit may cut too deeply into the bottom skin, weakening the fold. Conversely, if it leaves too much core material, the panel will resist folding, leading to cracked paint or bowed return legs.
Total Panel Thickness | Typical Aluminum Skin Gauge | Core Material Options | Primary Use Case |
|---|---|---|---|
3mm | 0.15mm - 0.30mm | PE (Polyethylene) | Interior fit-outs, flat signage, exhibition displays |
4mm | 0.40mm - 0.50mm | PE, FR (Fire Retardant), A2 | Exterior architectural cladding, curtain walls, canopies |
6mm | 0.50mm | FR, A2 | High-rise facades, hurricane zones, heavy transit hubs |
The 3mm specification excels in controlled indoor environments. You will primarily see these panels used for corporate signage, interior wall linings, exhibition stands, and partition walls. Their lightweight nature makes them ideal for applications where structural framing is minimal or non-existent. Retail environments frequently utilize 3mm panels for column covers, point-of-purchase displays, and suspended ceiling elements. The reduced core thickness provides a sleek, flat surface perfect for direct digital printing, screen printing, or vinyl graphic application.
Despite their utility indoors, 3mm panels carry severe performance limitations when exposed to exterior elements. They possess very low wind load thresholds. When subjected to dynamic wind pressure, a 3mm panel will deflect significantly more than thicker alternatives. This deflection stresses the fastening points. Over time, wind suction can literally pull the thin aluminum skin right over the rivet heads, leading to mechanical failure. Furthermore, 3mm panels lack substantial thermal mass. They remain highly susceptible to thermal bowing. When direct sunlight heats the exterior skin, it expands faster than the shaded interior skin. The thin core cannot resist this differential expansion, causing the panel to warp outward and distort the facade's appearance.
The primary advantages of 3mm panels lie in flexibility and installation speed. They offer significant economic benefits for projects with tight margins. Because they are highly flexible, installers can easily cut, route, and curve them for complex interior designs. You do not need specialized heavy machinery to manipulate a 3mm sheet. Standard carpentry tools, like a track saw with a fine-tooth aluminum blade, often suffice for basic modifications on site. This ease of fabrication significantly speeds up installation times, reducing labor hours. For curved architectural features like reception desks or rounded archways, the 3mm thickness allows for tight bend radii without cracking the aluminum face or stressing the core.
When architects design commercial exterior cladding, curtain walls, and building envelopes, 4mm is the default specification. This thickness dominates the exterior facade market globally. It provides the exact structural characteristics required to withstand external environmental forces while maintaining a manageable weight for the installation crew. You will find 4mm panels on everything from mid-rise office buildings and automotive dealerships to retail storefronts and hospital exteriors.
The 4mm thickness perfectly balances weight, rigidity, and wind load capacity. A standard 4mm panel, typically paired with robust 0.5mm aluminum skins, provides sufficient rigidity to span standard framing distances—often up to 4 or 5 feet between vertical extrusions. This structural stiffness prevents excessive deflection under negative wind pressure. The panel acts as a rigid diaphragm, transferring wind loads efficiently to the aluminum sub-framing and Z-girts. This balance ensures the facade remains flat, visually pristine, and structurally sound over decades of exposure to harsh weather.
Beyond structural strength, the 4mm thickness introduces a functional level of thermal resistance and sound dampening. The core acts as a thermal break, reducing heat transfer through the building envelope. While you should never rely on it as a primary insulation material, it contributes to the overall thermal performance of the rainscreen wall assembly. Acoustically, the 4mm mass dampens external noise transmission, providing a superior barrier compared to thinner solid metal sheets. This acoustic benefit proves highly valuable in urban environments near busy roadways, airports, or transit corridors.
Building code compliance drives the widespread adoption of 4mm panels. Modern building codes across major jurisdictions strictly regulate exterior cladding materials to prevent vertical fire spread. When manufactured with an FR (Fire Retardant) or A2 (non-combustible) core, 4mm panels align perfectly with mid-rise and high-rise fire safety requirements. The 4mm dimension allows manufacturers to pack enough fire-retardant minerals into the core to pass stringent assembly tests like NFPA 285 in North America or EN 13501-1 in Europe. This ensures the facade resists flame spread and limits smoke development during a fire event.
High-rise towers and extreme environments demand the robust performance of 6mm panels. You must specify this thickness in high-wind-load zones, such as hurricane-prone coastal areas where building envelopes face extreme positive and negative pressures. Heavy-duty transit hubs, stadiums, and industrial facilities also rely on 6mm panels to withstand severe operational stress. The sheer mass and stiffness of a 6mm panel prevent the structural fatigue that would quickly destroy thinner cladding materials in these harsh conditions.
The increased core thickness allows for maximum rigidity and wider panel spans between structural supports. Because the panel resists bending so effectively, structural engineers can increase the distance between the vertical mullions or horizontal transoms. This capability potentially reduces the required aluminum extrusion framing behind the facade. By minimizing the sub-structure, you can offset the higher initial material cost of the 6mm panels. Fewer framing members also mean fewer thermal bridges penetrating the exterior insulation, leading to a more energy-efficient wall assembly.
Thicker panels inherently provide enhanced insulation and impact resistance. The denser, thicker core offers higher acoustic dampening, making it ideal for airports or manufacturing facilities where noise control is a priority. Crucially, 6mm panels offer superior resistance to blunt force impacts. In ground-level applications exposed to heavy pedestrian traffic, equipment movement, or potential vandalism, the 6mm profile prevents unsightly denting and surface damage that would ruin a 3mm or 4mm sheet.
Specifying 6mm panels involves distinct trade-offs on the job site. The primary negative impact is the increased dead load on the building structure. Engineers must account for this extra weight when designing the primary steel or concrete frame, as well as the facade mounting clips. Material costs are substantially higher due to the increased volume of core material and heavier aluminum skins. Furthermore, installation complexity rises sharply. Handling heavier panels requires more labor and specialized lifting equipment, such as vacuum lifters. Fabricators also need heavy-duty CNC routing equipment to mill the thicker core accurately. Operators must slow down their feed rates and use specific router bit geometries to clear the extra core material without burning the adhesive layers or dulling cutting tools prematurely.
Selecting the correct thickness requires a systematic approach based on structural engineering principles. Wind load and building height requirements dictate the baseline specification. Dynamic wind pressure increases exponentially with building height. A panel installed at ground level experiences vastly different forces than one installed on the fortieth floor. Architects must calculate the maximum expected wind load (often expressed in Pascals or PSF) to determine the minimum allowable panel thickness and skin gauge. High wind pressures mandate 4mm or 6mm panels to prevent catastrophic deflection and fastener pull-out.
Span width and framing support structures share an inverse relationship with panel thickness. Thicker panels can span larger distances. If your design features large, uninterrupted cassette panels measuring 1500mm by 3000mm, a 3mm panel will sag under its own weight, creating a distorted reflection. A 4mm or 6mm panel will maintain structural flatness across that same span. You must evaluate the cost of the panel against the cost of the aluminum sub-structure. Sometimes, upgrading to a 6mm panel allows you to eliminate secondary support rails, resulting in a lower overall installed cost despite the higher panel price.
Fabrication methods and bend radii also influence your choice. Thickness directly impacts the routing and folding process, commonly known as V-grooving. When folding a panel to create a cassette edge, the router must remove a specific volume of core material. Thicker panels require wider router bits and precise depth control. Furthermore, minimum bend radius limitations vary significantly. A 3mm panel can achieve a much tighter curve than a 6mm panel without stressing or cracking the exterior aluminum skin. If your design features sharp, sweeping curves or tight column wraps, thinner panels offer better formability.
Panel Thickness | Minimum Bend Radius (Approximate) | CNC Routing Feed Rate | Handling Equipment Required |
|---|---|---|---|
3mm | 45mm | Fast (Standard tooling) | Manual (1-2 workers) |
4mm | 60mm | Medium (Standard tooling) | Manual (2 workers) |
6mm | 90mm | Slow (Specialized chip-clearing bits) | Vacuum lifters / Crane assist |
Oil canning remains one of the most common aesthetic failures in metal cladding. This phenomenon manifests as a visible waviness or buckling in the flat areas of the panel. It occurs when thermal expansion forces exceed the panel's internal stiffness. To prevent oil canning in high-temperature or high-stress environments, you must specify a thicker panel. Upgrading from a 3mm to a 4mm panel, or increasing the aluminum skin thickness from 0.3mm to 0.5mm, drastically increases the panel's rigidity. This added stiffness resists the compressive forces that cause the waviness, ensuring a perfectly flat facade even under direct summer sun.
Fire safety compliance misconceptions often lead to dangerous specification errors. Increasing the overall thickness does not inherently increase fire safety. A 6mm panel with a standard polyethylene (PE) core is highly combustible and extremely dangerous for exterior cladding. Fire rating is determined entirely by the core material composition. You must specify an FR (Fire Retardant) or A2 (non-combustible mineral) core to meet modern building codes. The millimeter thickness only matters regarding how much of that fire-resistant material is present, but the chemical makeup of the core dictates the actual fire performance and code compliance.
Galvanic corrosion and fastener selection require careful attention during installation. When you specify thicker, heavier panels, the mechanical fasteners must bear increased shear loads. You must use appropriate stainless steel or coated aluminum fasteners. Never use incompatible metals like bare carbon steel screws, as moisture will trigger galvanic corrosion, rapidly degrading the connection points and causing rust streaks down the facade. Furthermore, the extrusions and mounting clips must accommodate the specific thermal expansion rates of the chosen panel thickness. Thicker panels exert more force when they expand, so the sliding clips in a rainscreen system must have adequate travel distance to prevent the panels from buckling against each other at the joints.
Consult with a structural engineer to calculate exact dynamic wind loads for your specific building height and location to determine the baseline thickness requirement.
Request technical data sheets (TDS) from manufacturers to verify the exact skin gauge and core composition (FR/A2) for your chosen thickness.
Order physical samples of the intended thickness to conduct in-house fabrication testing, specifically checking V-groove routing depth and folding behavior.
Review the sub-framing design to ensure the extrusion depths, thermal expansion gaps, and fastener types can support the dead load of the selected panel.
Q: Can I use 3mm aluminum composite panels for exterior cladding?
A: You should avoid using 3mm panels for permanent exterior architectural facades. They lack the structural rigidity required to withstand dynamic wind loads. Exposure to exterior elements often leads to severe deflection, mechanical failure at fastening points, and visible oil canning due to thermal expansion.
Q: What is the standard aluminum skin thickness for a 4mm ACP?
A: For architectural grade exterior cladding, the standard aluminum skin thickness is 0.5mm. This gauge provides necessary rigidity and impact resistance. For lighter duties, such as single-story retail facades or specialized signage, manufacturers may use 0.3mm or 0.4mm skins.
Q: Does a thicker aluminum composite panel provide better fire resistance?
A: No, thickness alone does not determine fire resistance. Fire safety relies entirely on the core material composition. An FR (Fire Retardant) or A2 (non-combustible) core provides fire resistance. A 6mm panel with a standard PE core is more combustible than a 4mm panel with an A2 core.
Q: How does ACP thickness affect routing and folding?
A: Thickness dictates the V-groove depth required for folding. The router must be precisely calibrated to the specific core thickness. The goal is to remove enough core material to allow a clean 90-degree fold while leaving exactly 0.2mm to 0.3mm of core material above the bottom aluminum skin to prevent cracking.
Q: What is the weight difference between 3mm, 4mm, and 6mm ACP?
A: A standard 3mm panel weighs approximately 4.5 kg/m². A 4mm architectural panel with 0.5mm skins weighs roughly 5.5 kg/m². A 6mm heavy-duty panel weighs about 7.3 kg/m². You must factor these differences into your structural dead load calculations.
Q: Are 2mm or 5mm aluminum composite panels available?
A: Yes, but they serve niche markets. The 2mm thickness is strictly for ultra-light indoor craft applications, temporary displays, or vehicle interiors. The 5mm thickness is a rare custom extrusion, usually manufactured only for specific proprietary facade systems that require non-standard span calculations.
