Here are the professional methods for installing aluminum composite panels (ACPs), summarized in clear steps:
---
Standard Installation Methods

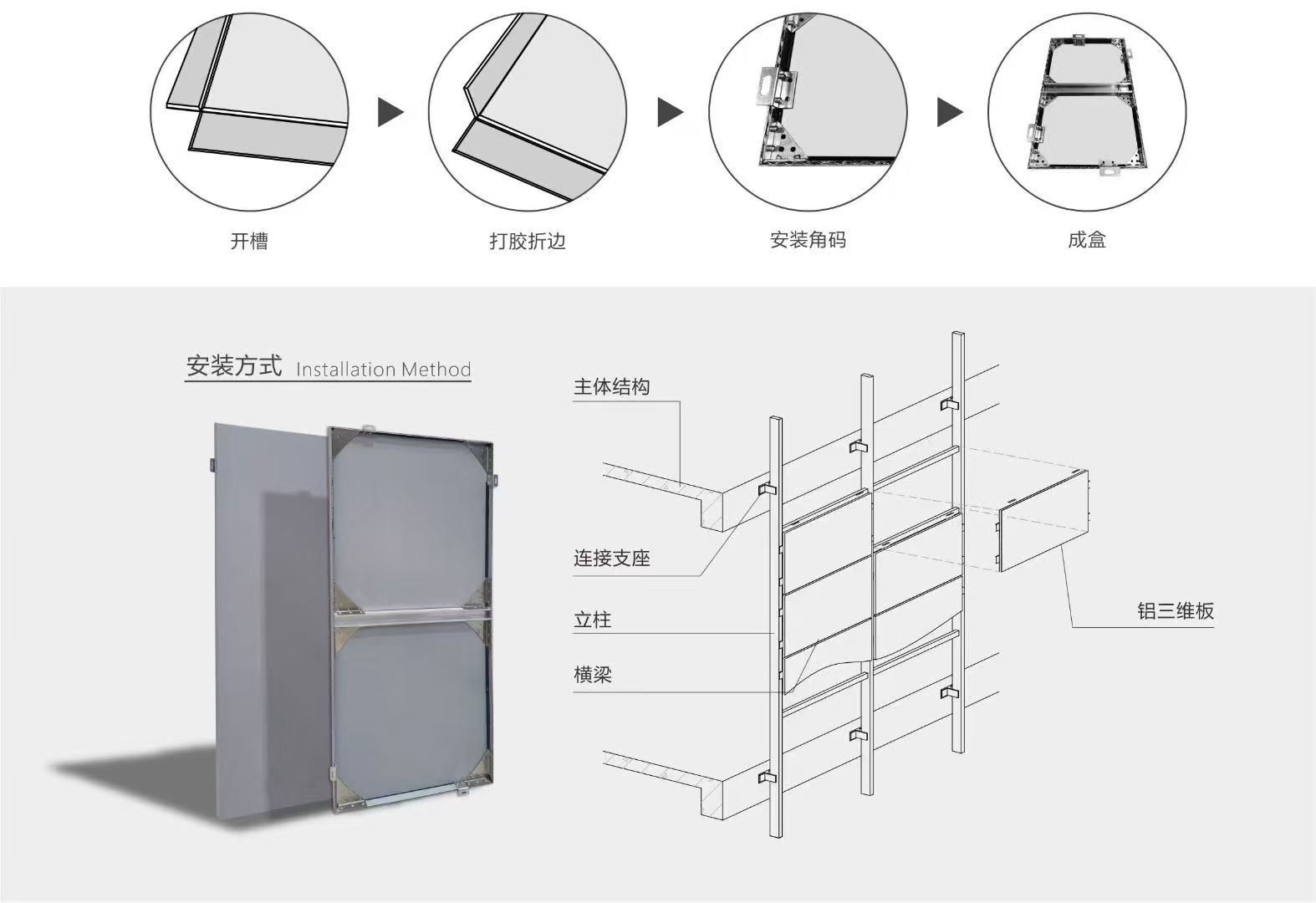

A. Frame Mounting (Recommended for Curtain Walls)
1. Install Support Frame:
- Fix vertical mullions (main columns) and horizontal transoms (secondary beams) to the building structure using anchors or welded connectors.
- Ensure frame flatness: ≤2mm deviation per 3m.
2. Attach Panels:
- Drill countersunk holes at panel corners and mid-edges.
- Secure panels to the frame with stainless steel screws/rivets, maintaining 10–15mm gaps between panels for thermal expansion .
3. Seam Treatment:
- Fill gaps with foam backer rods, then apply silicone weather-resistant sealant (e.g., neutral-cure silicone) .
---
B. Structural Adhesive Bonding (For Flat Surfaces)
1. Surface Preparation:
- Clean substrate (e.g., plywood, cement board) to remove dust/oil.
- Roughen smooth surfaces for better adhesion.
2. Apply Adhesive:
- Use high-strength structural adhesive (e.g., silicone-based or PU adhesive).
- Apply in zigzag patterns or dots (coverage ≥60%).
3. Panel Placement:
- Press panels firmly onto the substrate within 10 minutes of adhesive application.
- Support with temporary braces for 24h curing.
---
C. Clip/Snap-on Systems (Prefabricated Panels)
1. Mount Clips:
- Install Z-shaped aluminum brackets onto the frame or wall using screws.
2. Snap Panels:
- Slide prefabricated ACPs into the clips until they lock.
- No visible fasteners; allows quick replacement.
---
️ Critical Precautions
- Environmental Limits:
- Install in dry conditions (humidity ≤60%, temperature 5–40°C)
- Avoid installation during rain or strong winds (>Level 4).
- Material Handling:
- Cut panels with carbide-tipped tools to prevent edge burrs .
- For curved surfaces: Minimum bend radius ≥300mm; avoid repeated bending .
- Corrosion Prevention:
- Use insulating gaskets when ACPs contact dissimilar metals (e.g., steel) .
---
Post-Installation Care
- Cleaning:
- Wipe with alcohol-based cleaner or mild soapy water; avoid abrasive/acidic solutions
- Inspection:
- Check sealant integrity annually; recoat if cracked.
- Tighten loose screws/rivets promptly.
---
Key Recommendations
- For exteriors/windy areas: Frame + Mechanical Fixing (screws/rivets) .
- For interiors: Adhesive bonding simplifies installation .
- Always follow manufacturer’s bend radius limits to avoid cracking .
