Ice Flower Fuzzy Aluminum Composite Panel

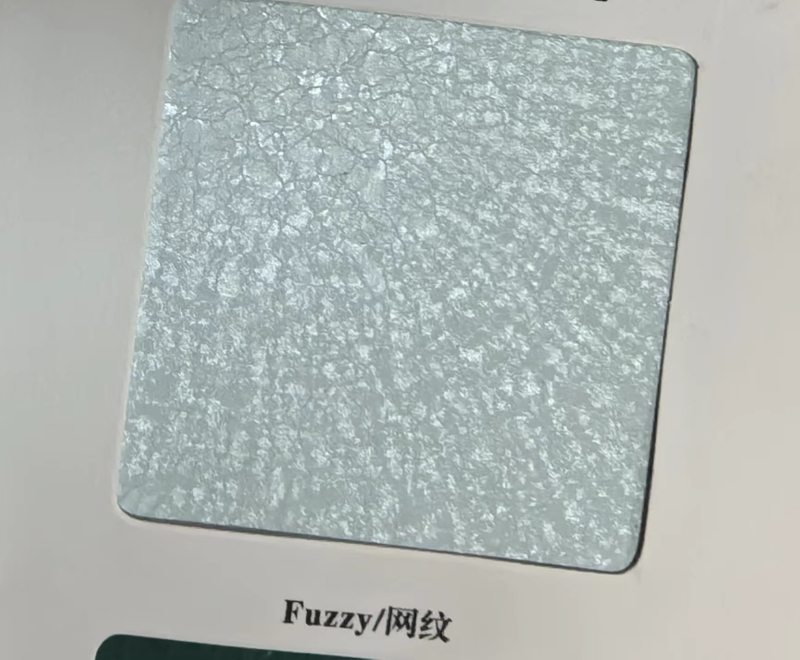

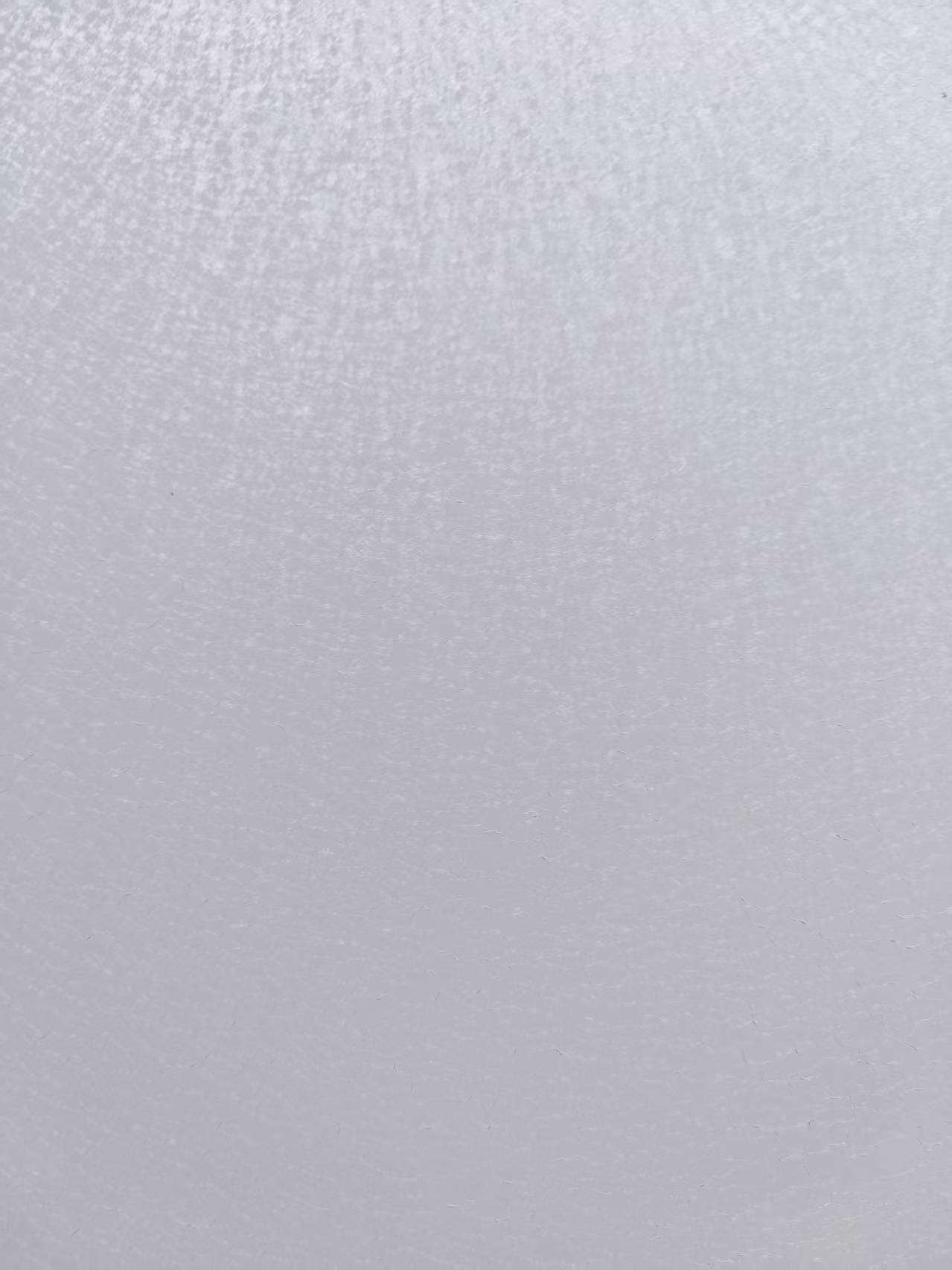

Ice-pattern aluminum composite panels (ACP) are innovative decorative materials that combine the elegant, crystalline texture of ice with the practical benefits of aluminum. Featuring a unique, high-resolution ice-like surface finish, these panels create a cool, modern aesthetic that mimics natural frost patterns while being significantly lighter and more durable than glass or traditional decorative materials. They are highly weather-resistant, scratch-proof, and require minimal maintenance, making them ideal for both interior feature walls and exterior facades. Available in various ice-inspired textures and colors, ice-pattern ACPs offer a cost-effective and sustainable alternative for contemporary architectural designs seeking a distinctive, sophisticated look.

Availability:

Quantity:



Inquire Add to Basket

Product Description

INSTRUCTION

Width	1220mm, 1250mm, 1500mm
Length	Any size, recommend 2440mm, 3050mm, 4050mm
Panel Thickness	2mm~ 6mm, recommend 3mm
Alu.Skin Thickness	0.10mm~0.50mm, recommend 0.15mm,0.21mm,0.30mm
Standard Size	1220mm x 2440mm (4' x 8'); 1500mm x 3050mm (5' x 10')
Colors	Refer to Color Chart for more options
Others	Accept custom color and sizes

Product Overview

The ice-pattern effect on aluminum composite panels is primarily achieved through specialized surface coating techniques, most commonly using crackle paint (also known as ice-crack paint). The core principle relies on the physical stress generated during the curing process of the paint.

Typically, the process involves applying a flexible base coat first, followed by a topcoat. As the base coat dries and shrinks at a greater rate than the topcoat, the resulting stress pulls the surface layer apart, forming intricate, natural-looking cracks that resemble ice crystals or frost.

To enhance the visual depth and texture, manufacturers often use multi-layer spraying. A base color is applied first, followed by a special effect coat containing metallic particles (such as aluminum powder). By carefully controlling parameters like spraying distance, angle, and paint dilution, a highly realistic and three-dimensional ice pattern is created. Additionally, there are eco-friendly water-based versions of this paint available, which operate on the same stress-difference principle but offer better environmental protection.
