Product Overview
| Width | 1220mm, 1250mm, 1500mm |
| Length | Any size, recommend 2440mm, 3050mm, 4050mm, 5800mm |
| Panel Thickness | 3mm~6mm, recommend 4mm |
| Alu.Skin Thickness | 0.21mm~0.50mm, recommend 0.30mm and 0.40mm; |
| Alu. Alloy | AA3003(Different Grade Available) |
| Surface Treatment | PVDF |
| Colors | Refer to Color Chart for more options |
| Others | Accept custom color and sizes |
Product Features
Flexible Specifications
The standard panel thickness is 4mm, with options of 3mm, 5mm, and 6mm. The coil thickness is 0.7/0.5mm as standard, with alternatives like 0.5/0.4mm and 0.5/0.5mm. The panel width is 1220mm standard, with options of 1250mm, 1500mm, and 1550mm, and the length is 2440mm standard, up to 5800mm. This wide range of specifications ensures that the panel can be used in a variety of architectural designs, from small feature walls to large curtain walls.
Applications

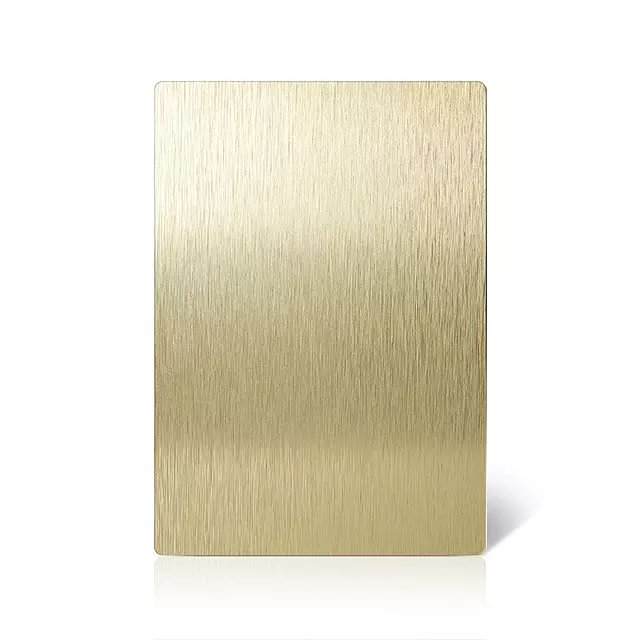

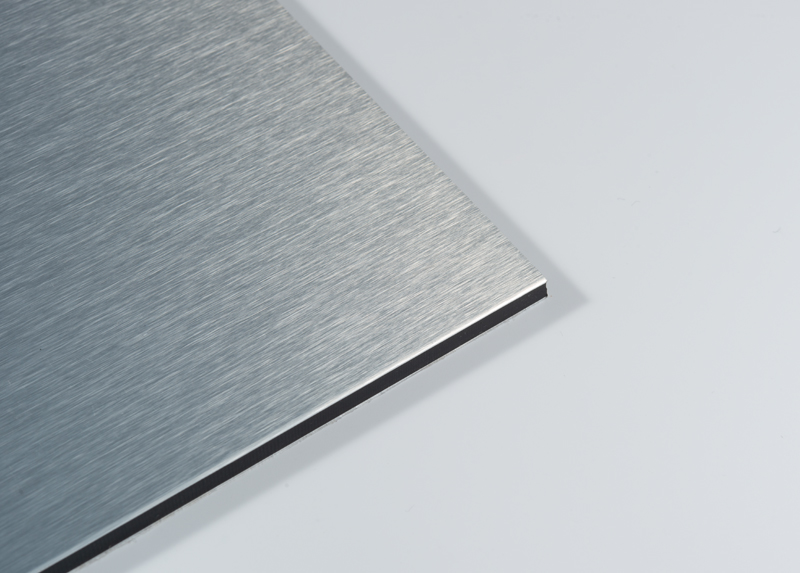

Brushed aluminum composite panels (ACP) are highly popular decorative materials known for their distinctive, linear metallic texture. Created through a specialized mechanical brushing process on the aluminum surface, these panels feature fine, continuous lines that give them a sophisticated, modern appearance. Common finishes include silver, gold, and copper. Beyond their elegant aesthetics, brushed ACPs retain all the excellent properties of standard composite panels: they are lightweight, durable, and highly resistant to weathering and corrosion. The unique texture also helps conceal minor scratches and fingerprints, making them a low-maintenance choice for both exterior curtain walls and stylish interior designs.
