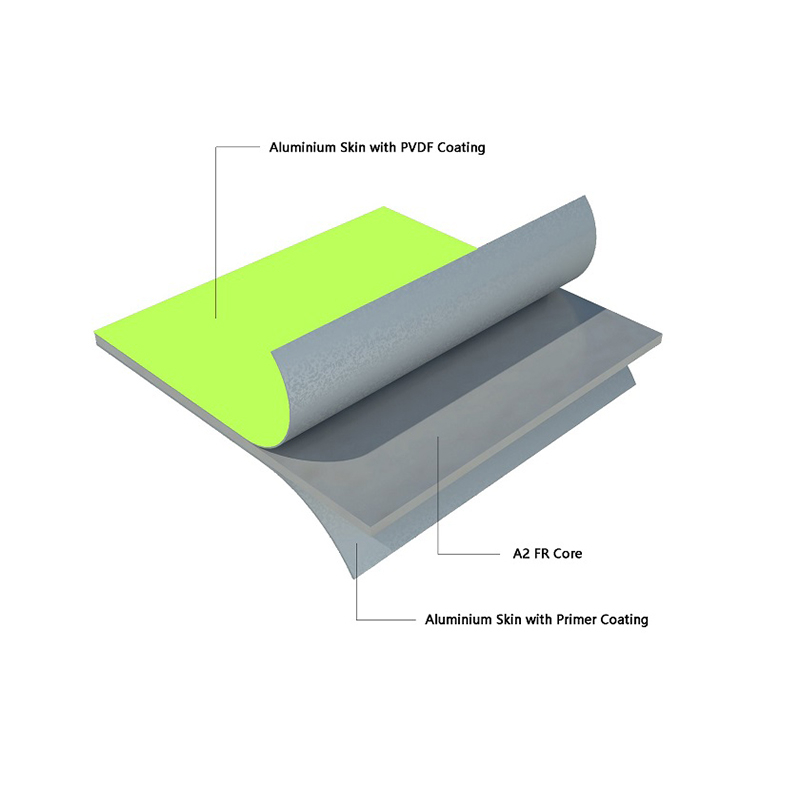

With A2 graded mineral filled core, MC BOND® FR PRO meets the strict requirement of fire regulations and enhances the possibilities for the concept and design of buildings at the same time. The 0.50mm 3003H24 aluminium skin allows freedom of design, combined with superior technological attributes. MC BOND® FR PRO not only complies with the highest design standards BS EN 13501-1:2018 Class A2 fire behavior result, S1 classification in relation to smoke production and D0 classification in relation to flaming droplets or particles, but it also meets the latest technical requirements in the fields of sustainability and fire protection.
It has the following advantages:
1. Good rigidity, light weight, high strength, good corrosion resistance, and the color of fluorocarbon paint can be maintained for more than 25 years.
2. Good processability, easy and quick installation, can be processed into complex shapes such as plane, arc and spherical.
3. Not easy to stain, easy to clean and maintain.
4. Recyclable, good for environmental protection.
ALUMINIUM COMPOSITE PANEL SPECIFICATIONS:
Width | 1220mm, 1500mm, 2000mm |
Max. Length | 11800mm |
Panel Thickness | 4mm , 5mm ,6mm |
Alu.Skin Thickness | 0.50mm |
Alloy | AA3003H24 |
Surface Coating | PVDF/FEVE/NANO coating |
Colors | Regular color chart options, accept RAL, Pantone color code |
Others | Accept custom sizes and colors . |
CORE FEATURES
Core Components | New Non-combustible Natural Inorganic Mineral Materia |
Core Thickness | 3-5mm |
Core Density | 1.9kg/m²·mm |
Calorific Value | ≤3MJ/kg |
Fire Growth Rate | ≤120(FIGRA), W/s |
Total Heat Release in 600s | ≤7.5(THR600s), MJ |
APPLICATION

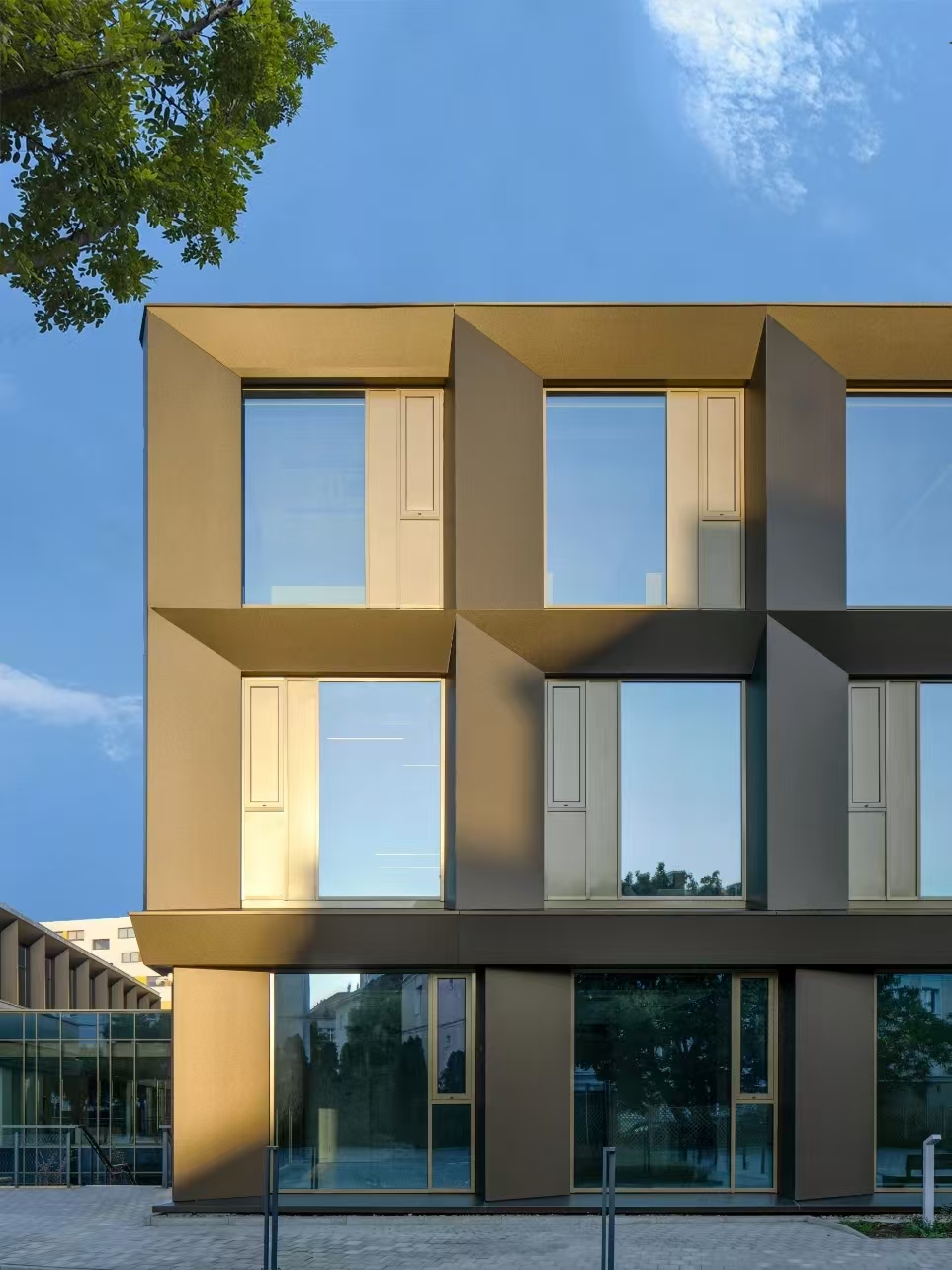

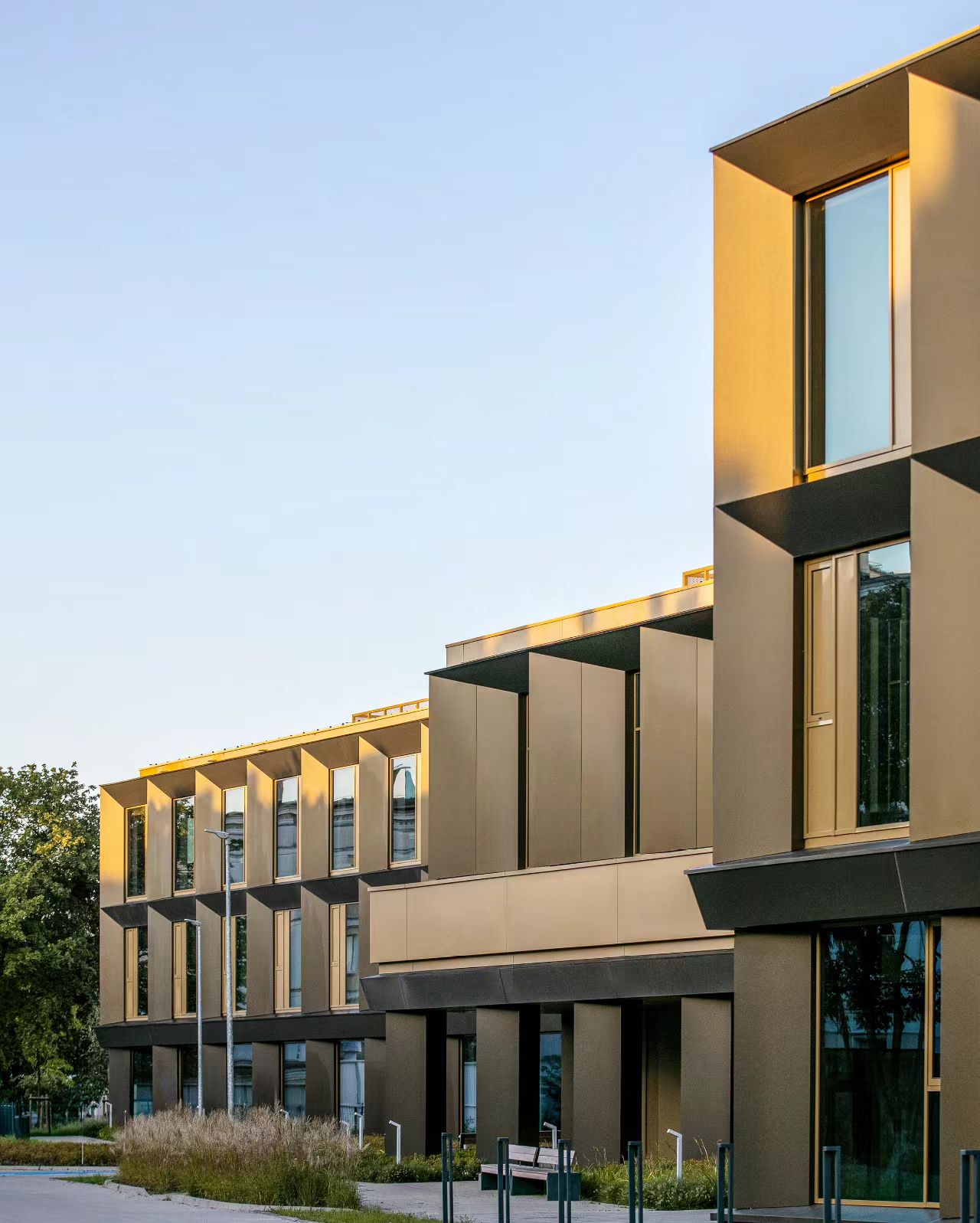

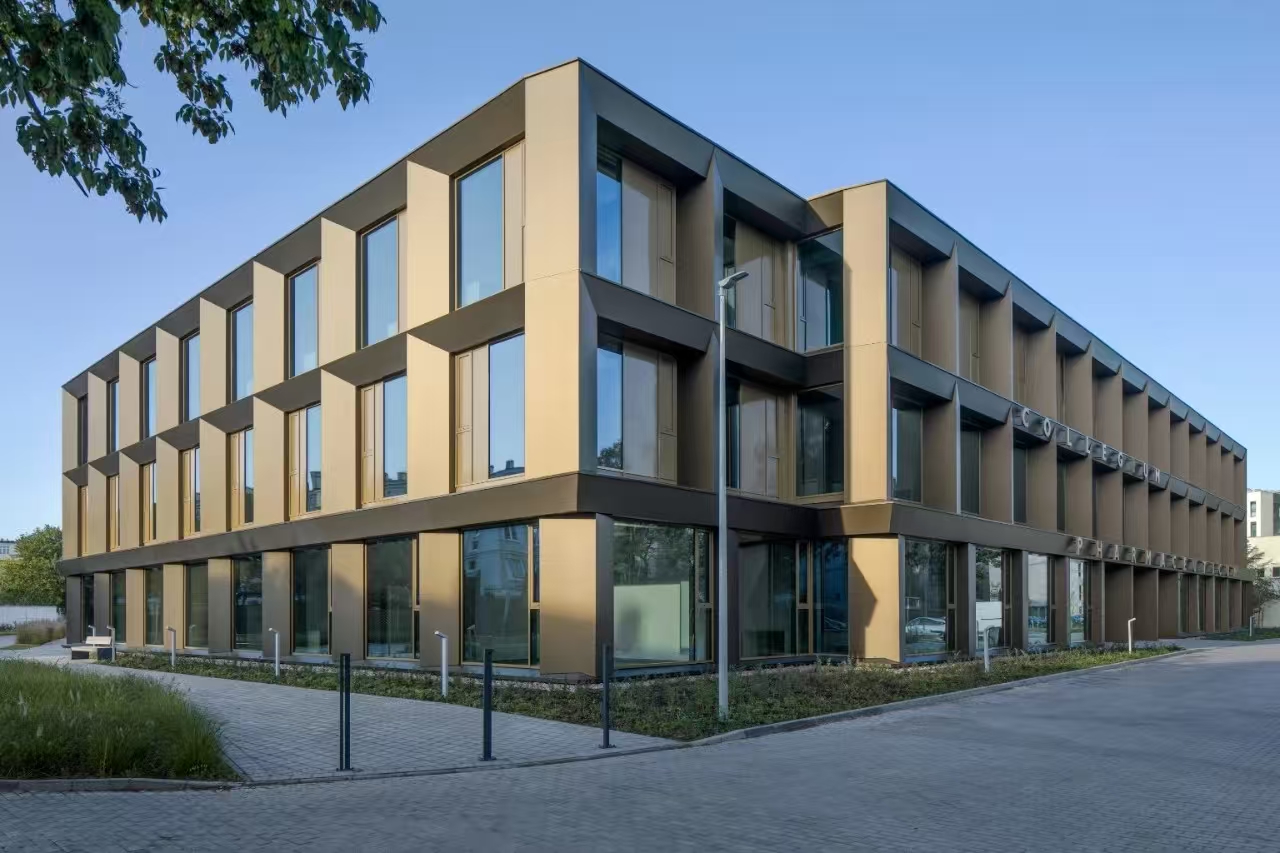

ALUMINIUM COMPOSITE PANEL are a popular choice for building exteriors due to their good stability. ALUMINIUM COMPOSITE PANEL can be used in various applications such as facades, ceilings, walls, and balustrades. They provide a durable and visually appealing solution for architectural design.
FAQ
Q1: Are you manufacturer?
Q1: Yes, we are manufacturer located in Taizhou city, Zhejiang Province.
Q2: Delivery time?
A2: For standard sizes, within 15 working days after order confirmed.
Q3: How about the guarantee time for ACP panels?
A3: PVDF/FEVE coating for the exterior use, which has an excellent weather resistance, 15-years guarantee time; PE coating for interior use, 10-years guarantee time; PE coating for exterior use, 5-years guarantee time.
